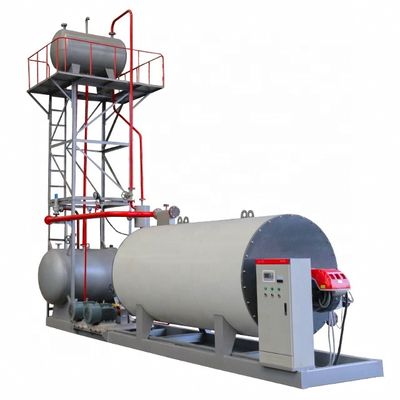

300,000-2,000,000 Kcal/H Horizontal Energy Saving Oil Heating Industrial Thermal Boiler

300,000-2,000,000 Kcal/H Horizontal Energy Saving Oil Heating Industrial Thermal Boiler
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Informations de base
Conditions de paiement et expédition
Description de produit
Product Description

High Quality

TAIGUO YY(Q)W series thermal fluid boiler heater has skid-mounted design and full automatic control system. The heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, working temperature ≤310℃. Adopting three-pass structure, 3 layer corrugated coil rings.

Free-Installation

The complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, user no need to do installation, just filling the thermal fluid oil, join the fuel and electricity. Entire boiler system is portable.

Excellent Structure

Free-Assembly

Portable System

Three Fire-Passes

New Wet-Back Design

Corrugated Furnace, Fire-tube

Safety Technologies

Automatic Ignition Burner

Accurate Oil-Temp. Control ±1℃

Automatic Oil Replenishment

Automatic Over-pressure Protection

Automatic Over-temp. Protection

Simple Operation

Automatic PLC ON/OFF

Visible Oil Temperature

Visible Working Pressure

Visible Exhaust-gas Temperature

Adjustable Oil Temp. ≤310℃

Model Catalogue
Model
YY(Q)W-350
YY(Q)W-500
YY(Q)W-700
YY(Q)W-1000

Heat Power
300,000 Kcal/H
420,000 Kcal/H
600,000 Kcal/H
850,000 Kcal/H
Boiler Horsepower
350 KW
500KW
700 KW
1000 KW
Working Pressure
≤ 10 BAR
≤ 10 BAR
≤ 10 BAR
≤ 10 BAR
Oil Outlet Temp.
≤310 ℃
≤310 ℃
≤310 ℃
≤310 ℃
Fuel Type
Gas, Oil
Gas, Oil
Gas, Oil
Gas, Oil
Model
YY(Q)W-1200
YY(Q)W-1400
YY(Q)W-1800
YY(Q)W-2400

Heat Power
1,000,000 Kcal/H
1,200,000 Kcal/H
1,500,000 Kcal/H
2,000,000 Kcal/H
Boiler Horsepower
1200 KW
1400 KW
1800 KW
2400 KW
Working Pressure
≤ 10 BAR
≤ 10 BAR
≤ 10 BAR
≤ 10 BAR
Oil Outlet Temp.
≤310 ℃
≤310 ℃
≤310 ℃
≤310 ℃
Fuel Type
Gas, Oil
Gas, Oil
Gas, Oil
Gas, Oil
Detailed Image
1. Italy BALTUR/ RIELLO Burner
2. PLC ON/OFF Control Cabinet

3. Oil Storage Tank

4. Oil Expansion Tank

5.  Oil Circulation Pumps

6. Hot Oil Outlet Pipe

7. Cold Oil Inlet Pipe

8. Thermometer, Pressure Gauge

9. Furnace Explosion-Proof Door

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting the support
* Visting our factory

Shipment

* Loading the container in the factory

* Manage the CHINA-CUSTOM clearance, ocean shipping

After-Sales Service

* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the boiler.

Returning Visit

* Our After-Sales team will return the visit to remind the maintenance, and help the user to solve the problem in daily operation.

About Us

Well-organized Workshop

TAIGUO has 2 workshops, adopting 5S management standards, the workshop environment is clean and tidy, equipment and products are placed in an orderly manner. All the above, just to create a comfortable working experience for production workers and visiting customers. 300,000-2,000,000 Kcal/H Energy Saving Industrial Thermal Oil Heating Boiler

Sufficient New Stocks

In order to manage the delivery ASAP, TAIGUO ready the sufficient new stocks, include gas (oil) boiler, gas (oil) fired steam generator, coal (biomass) boiler, electric heating boiler, gas (oil) fired thermal oil boiler, coal-fired thermal oil boiler, biomass fired thermal oil boiler, timber treatment cylinder, hot air furnace, etc. 300,000-2,000,000 Kcal/H Energy Saving Industrial Thermal Oil Heating Boiler

Experienced Team

TAIGUO has more than 190 employees, includes 2 general managers, 4 technical directors, 9 QC engineers,25 salesmen, 10 administrative staff, 4 warehouse staff, 6 financial staff, 4 pre-sales engineers, and 6 after-sales engineers, 120 frontline production workers.Energy Saving Industrial thermal oil heating boiler. 300,000-2,000,000 Kcal/H Energy Saving Industrial Thermal Oil Heating Boiler
