Aperçu /Produits/Chaudière à vapeur à tambour/ASTM Power Plants LPG Hot Water Boiler Power Plants LPG Hot Water Boiler Boiler Parts Boiler Drum

ASTM Power Plants LPG Hot Water Boiler Power Plants LPG Hot Water Boiler Boiler Parts Boiler Drum

1.0 Sets
MOQ
ASTM Power Plants LPG Hot Water Boiler Power Plants LPG Hot Water Boiler Boiler Parts Boiler Drum
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Warranty: 1.5 years
Applicable Industries: Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Type: boiler drum
Product name: power plants lpg hot water boiler boiler parts boiler drum
Keywords: boiler drum
Color: Customer's Requirement
Application: power plants lpg hot water boiler
Material: Carbon Steel
After Warranty Service: No service
Local Service Location: None
Informations de base
Conditions de paiement et expédition
Packaging Details: Packing: Metal Frame
Supply Ability: 100 Ton/Tons per Month
Description de produit

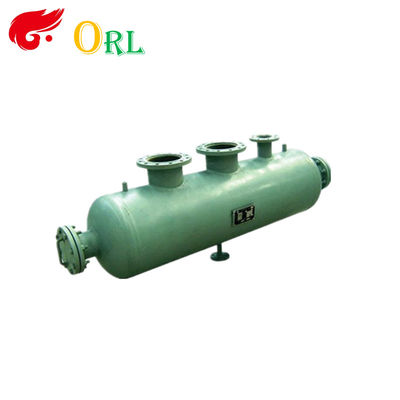

power plants lpg hot water boiler boiler parts boiler drum

Description

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.



Product parameter



Product Name

Boiler Steam Drum ( Steam Water Separator )

Applied Area

Natural circulation boiler

Drum Shell Plate Material

- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70

- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353

Drum Head Material

Same as shell

Nozzle Tube Material

As per design

Standard

China GB, ASME, EN

Manufacturer Grade

China A Grade, ABS Certificated, TUV Certificated

Working Temperature

Saturation Temperature at rated pressure

Working Pressure

1.6 MPa ~ 22.5 MPa

Shell Plate Thickness

(Drum Wall Thickness)

≤150 mm

Drum Diameter

≤3,200 mm

Drum Length

≤25,000 mm

Welding

- Shell : SMAW, SAW

- Nozzle tube : GTAW (TIG), SMAW

Welding NDT

- Shell longitudinal seam : 100% RT, 100% UT

- Shell circumferential seam : 100% RT, 15% UT

- Nozzle tube angle seam : 100% UT, 100% MT
