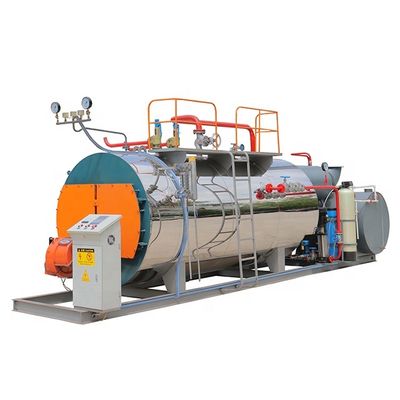

2 4 6 horizontal 10 ton diesel oil gas fired steam boiler for chemical industry

1.0 Sets
MOQ
2 4 6 horizontal 10 ton diesel oil gas fired steam boiler for chemical industry
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Food & Beverage Factory, Garment Factory, Textile Mill, Washing Plant
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: boilerbody, burner
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Style: Horizontal
Fuel: Gas, Oil
Output: Steam
Dimension(L*W*H): REFER TO MODELS
Weight: REFER TO MODELS
Warranty: 2 years
Key Selling Points: Easy to Operate
Product: Gas Oil Fired Steam Boiler
Steam Capacity: 2 to 10 ton per hour
Boiler Horsepower: 143 to 715 HP
Working Pressure: ≤13Bar (accept customization)
Steam Temperature: ≤194℃ (accept customization)
Applicable Fuel: Natural Gas, LPG, Diesel, Heavy Oil
Boiler Structure: Firetube, Wetback, 3Pass
Installation Method: Free-Installation (No Need Assembly)
Control System: PLC, Touch Screen, English Language
Application Field: Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO, CE
Informations de base
Certification: ISO, CE
Conditions de paiement et expédition
Packaging Details: Export standard seaworthy packing
Supply Ability: 2000 Ton/Tons per Year
Description de produit
Product Description

High Quality

Q/WNS series is a classical shell type boiler, with classical design: firetube+ wetback+ 3pass. Its average thermal efficiency >95%, design working life span more than 15years. Equipped with well-known auxiliary parts, such as BALTUR/RIELLO- Burner, DANFOSS- Pressure Controler, SIEMENS- PLC operation system, LEO- Multistage Pump, etc. to ensure the boiler's steady performance. The entire system warranty period: 2 Years.

Free-Installation

Before the shipment, complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, no need installation/ assembly. Just join the boiler to water/ gas/ electricity. Comparing with other traditional boilers in the market, our boiler does save lots of cost/ energy/ time in installation. The additional, the entire boiler system is portable.

Excellent Structure

Free-Assembly

Portable System

Three Fire-Passes

New Wet-Back Design

Corrugated Furnace, Fire-tube

Safety Technologies

Automatic Ignition

Automatic Water-Level Control

Automatic Over-Pressure Relief

Automatic Interlock Stop Protection

Automatic Fire/ Pressure Regulation

Simple Operation

Automatic PLC ON/OFF

Visible Working Pressure

Visible Steam Temperature

Adjustable Working Pressure

Visible Exhaust-gas Temperature

Model Catalogue
Model
Q/WNS0.5-1.0-Y(Q)
Q/WNS0.7-1.0-Y(Q)
Q/WNS1-1.25-Y(Q)
Q/WNS1.5-1.25-Y(Q)
Steam Capacity
500 KG/H
700 KG/H
1000 KG/H
1500 KG/H
Boiler Horsepower
32 HP
45 HP
64 HP
96 HP
Working Pressure
0-10 BAR
0-10 BAR
0-13 BAR
0-13 BAR
Steam Temperature
≤184 ℃
≤184 ℃
≤194 ℃
≤194 ℃
Fuel Type
Gas, Oil
Gas, Oil
Gas, Oil
Gas, Oil
Model
Q/WNS2-1.25-Y(Q)
Q/WNS3-1.25-Y(Q)
Q/WNS4-1.25-Y(Q)
Q/WNS5-1.25-Y(Q)
Steam Capacity
2000 KG/H
3000 KG/H
4000 KG/H
5000 KG/H
Boiler Horsepower
128 HP
192 HP
256 HP
320 HP
Working Pressure
0-13 BAR
0-13 BAR
0-13 BAR
0-13 BAR
Steam Temperature
≤194 ℃
≤194 ℃
≤194 ℃
≤194 ℃
Fuel Type
Gas, Oil
Gas, Oil
Gas, Oil
Gas, Oil
Detailed Image
1. Italy BALTUR/ RIELLO Burner
2. PLC ON/OFF Control Cabinet
3. Water Softenor+Water Tank
4. Economizer

5. Steam Manifold

(accept customazation)

6. Vertical Multistage Pumps

7. Furnace Explosion-Proof Door

8. Feeding Water Valves, Pipieline

9. Double Color Water Level Gauge

10. Boiler Blow-down Valve, Pipieline

11. Pressure Relief Valve, Pipieline

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting the support
* Visting our factory

Shipment

* Loading the container in the factory

* Manage the CHINA-CUSTOM clearance, ocean shipping

After-Sales Service

* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the boiler.

Returning Visit

* Our After-Sales team will return the visit to remind the maintenance, and help the user to solve the problem in daily operation.

About Us

Well-organized Workshop

TAIGUO has 2 workshops, adopting 5S management standards, the workshop environment is clean and tidy, equipment and products are placed in an orderly manner. All the above, just to create a comfortable working experience for production workers and visiting customers.2 4 6 10 ton diesel oil gas fired steam boiler for chemical industry

Sufficient New Stocks

In order to manage the delivery ASAP, TAIGUO ready the sufficient new stocks, include gas (oil) boiler, gas (oil) fired steam generator, coal (biomass) boiler, electric heating boiler, gas (oil) fired thermal oil boiler, coal-fired thermal oil boiler, biomass fired thermal oil boiler, timber treatment cylinder, hot air furnace, etc.

Experienced Team

TAIGUO has more than 190 employees, includes 2 general managers, 4 technical directors, 9 QC engineers,25 salesmen, 10 administrative staff, 4 warehouse staff, 6 financial staff, 4 pre-sales engineers, and 6 after-sales engineers, 120 frontline production workers. 2 4 6 10 ton diesel oil gas fired steam boiler for chemical industry
