CFB Boiler Drum 20t ASME Standard Natural Gas Hot Water Boilers Supplier

1 Set
MOQ
$1,000.00(>=1 Sets)
Prix
CFB Boiler Drum 20t ASME Standard Natural Gas Hot Water Boilers Supplier
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Construction works , Energy & Mining, Advertising Company
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1.5 years
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation/Once Through
Usage: Industry/Power Station
Structure: Fire/Water Tube
Pressure: High/Low Pressure
Steam Production: Max. 20t/h
Style: CFB Boiler
Fuel: Coal/Gas/Oil-fired,Water Heat
Output: Hot Water/Steam
Dimension(L*W*H): Customization
Weight: 10~1000ton
Warranty: 1 Year
Key Selling Points: Heating Elements
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Boiler drum 20t Natural gas hot water boilers ASME Standard Supplier
Keywords: boiler Drum
Color: Customer's Requirement
Certification: ISO9001/SGS/TUV/ASME/EN
Informations de base
Certification: ISO9001/SGS/TUV/ASME/EN
Conditions de paiement et expédition
Packaging Details: normal wooden package
Supply Ability: 500 Ton/Tons per Month
Description de produit
Product Name

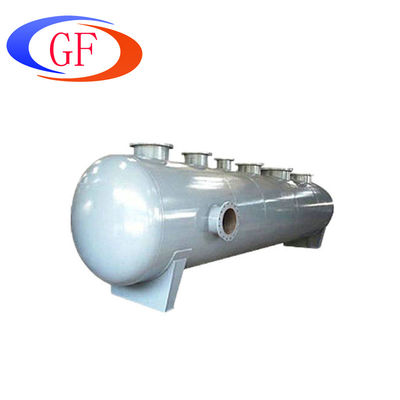

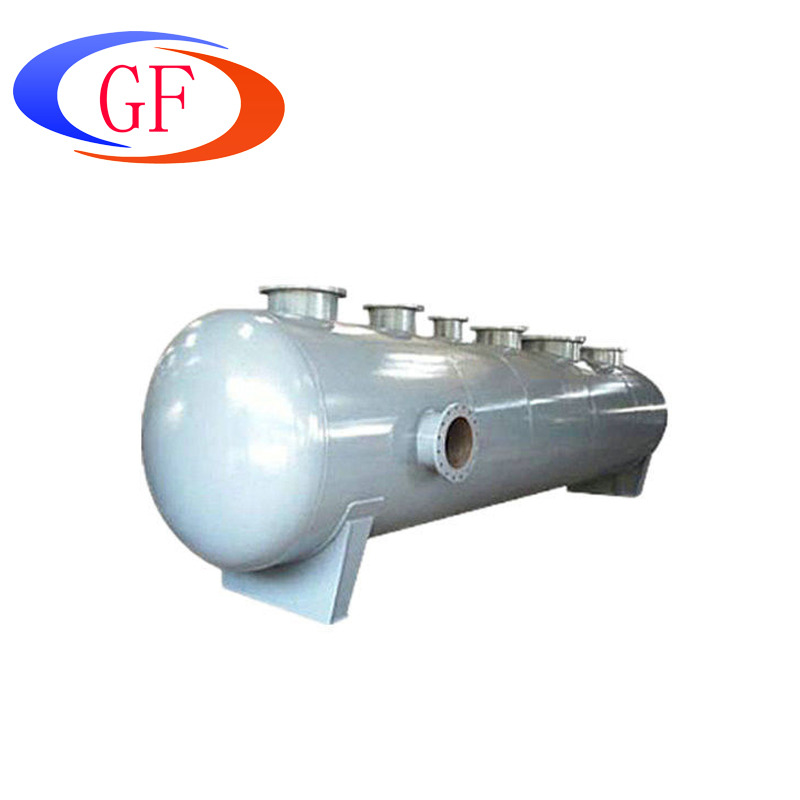

Boiler Steam Drum ( Steam Water Separator )
Applied Area
Natural circulation boiler
Drum Shell Plate Material
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material
Same as shell
Nozzle Tube Material
As per design
Standard
China GB, ASME, EN
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Working Temperature
Saturation Temperature at rated pressure
Working Pressure
1.6 MPa ~ 22.5 MPa
Shell Plate Thickness
(Drum Wall Thickness)
≤150 mm
Drum Diameter
≤3,200 mm
Drum Length
≤25,000 mm
Welding
- Shell : SMAW, SAW
- Nozzle tube : GTAW (TIG), SMAW
Welding NDT
- Shell longitudinal seam : 100% RT, 100% UT
- Shell circumferential seam : 100% RT, 15% UT
- Nozzle tube angle seam : 100% UT, 100% MT
Q1:How long is the warranty period? We provide 12 months warranty for all spare parts(exclude fragile parts). Q2:How do you control the quality? 1) All GF machines are in strict accordance with the ISO quality and CE system requirements. 2) Each procedure is crafted by professional Skilled labour, followed by particular QC 3) All information of our products can be checked in efficient management system. Q3:What certifications do you have? All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design. Q4:What kind of service do you provide? Before sales: Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation. Q5:Are you a factory or trading company, where are you located？ We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
