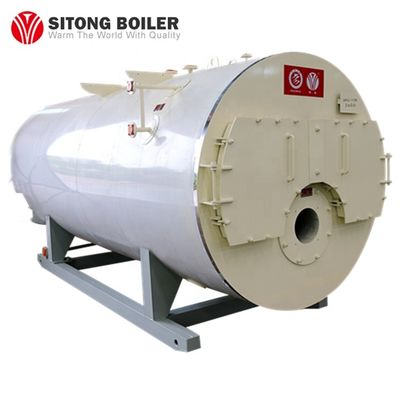

1 Ton 200 BHP Horizontal Steam Boiler Diesel Heavy Fuel Oil Machine For Laundry

1.0 Sets
MOQ
1 Ton 200 BHP Horizontal Steam Boiler Diesel Heavy Fuel Oil Machine For Laundry
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining, Advertising Company
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: Max. 20t/h
Style: Horizontal
Fuel: Oil/Gas
Output: Steam
Dimension(L*W*H): Customization
Weight: 4-45t
Warranty: 2 years
Key Selling Points: Automatic
Type:: Horizontal
Product name:: 1 Ton 200 BHP Diesel Heavy Oil Fired Steam Boiler Machine For Laundry
Thermal efficiency:: >90%
Capacity:: 1-20 ton
Fuel:: Oil/Gas
Feed water temperature:: 20 ℃
Warranty period:: 2 years
Place of Origin:: Henan, China (Mainland)
Brand Name:: Yutong
Certification:: CE, ISO, TUV, BV, SGS etc.
After Warranty Service: Online support
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO, SGS, CE, TUV, BV, ect.
Informations de base
Certification: CE, ISO, TUV, BV, SGS etc., ISO, SGS, CE, TUV, BV, ect.
Conditions de paiement et expédition
Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity
Supply Ability: 500 Set/Sets per Month Diesel Heavy Oil Fired Steam Boiler Machine For Laundry
Description de produit

1 Ton 200 BHP Diesel Heavy Oil Fired Steam Boiler Machine For Laundry

Model:WNS Type

Structure:Wet Back Fire Tube Three Pass

Rated Steam Capacity:1-25 ton/hr

Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa

Rated Steam Temperature:170/184/194/204/225 C

Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.





Model Rated Rated Rated Thermal Fuel Consumption Equipment Power Weight

Capacity

(t/h)

Pressure

(Mpa)

Temperature

(C)

Efficiency

(%)

Light oil

 (Kg/h)

Natural gas

 (Nm³/h)

Burn

light oil

Burn

gas

(t)
WNS1 1 0.7/1.0/1.25 170/184/194 >90 45-100 18-100 1.5 1.5 4
WNS1.5 1.5 >90.2 101.73 123.47 2.2 1.5 5
WNS2 2 1.0/1.25/1.6 184/194/204 >90.2 137.09 165.97 2.2 3 8
WNS3 3 >91 205.75 249.6 7.5 7.5 9
WNS4 4 >91 272.3 329.5 9 7.5 13
WNS5 5 >91.5 134-402 80-500 17.2 15 15
WNS6 6 >91.5 134-402 80-500 15 15 17
WN8 8 1.25/1.6/2.5 194/204/225 >91.6 523.4 631.5 26 22 21
WNS10 10 >91.6 212-890 150-1085 26 22 22
WNS12 12 >91.8 915.5 1090 26 22 27
WNS15 15 >91.8 931.5 1094.4 / / 34
WNS20 20 >92 1380.33 1598.44 / / 45
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.









1. Whether the boiler can burn dual fuel or multi-fuel?

Sitong boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.



2. What is the texture of spirally corrugated tube?

The texture of spirally corrugated tube is 20#.



3. The brand of burner?

The brands of burner are Italy Baltur, Rellio, Elco, etc.



4. What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.



5. What is the advantages of fire tube boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!



6. Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.



7. What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
