Natural GasThermal Oil heater low pressure Thermal oil boiler
Produt Introduction

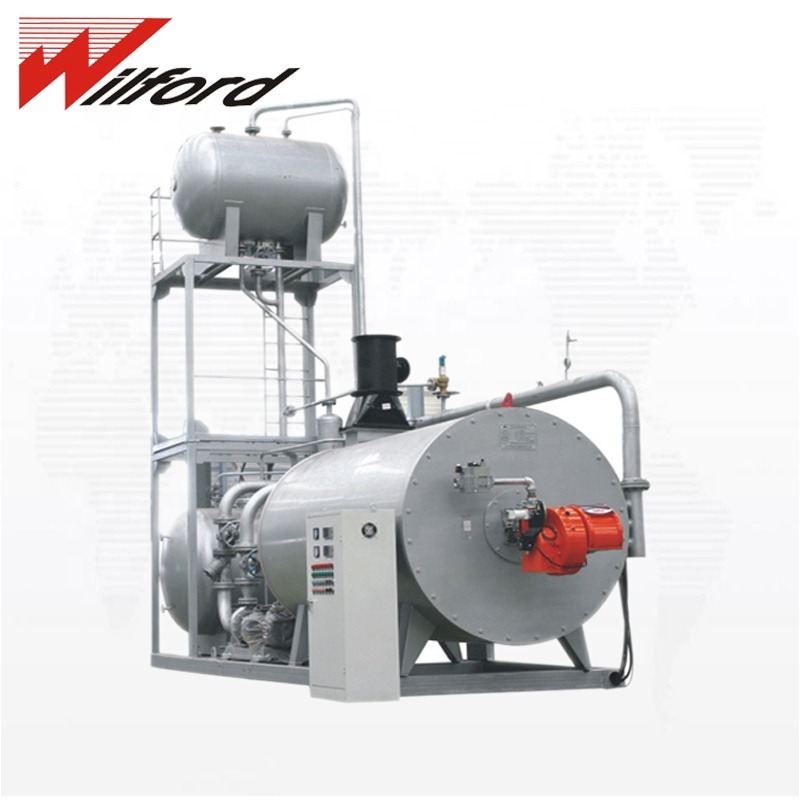

YY(Q)W oil(gas)heating-conduction boiler makes heat carrier circulation through hot oil pump is fast mounted forced circulation oil (gas) fuel boiler.The heating surface structure is compact. Inside/middle/outside (or inside and out side ) closely-aligned round coils constitute the heating surface . Inside coil is radiation heating surface.Middle/outside coils as well as inside coils together from convection heating surface .Fuel burns in inside coils' combustion chamber -combustion and heat release.After radiation heating surface absorbs most heat, high temperature flue gas enters the convection heating surface to transfer heat. Finally low temperature flue gas exports directly through chimney to atmosphere .
Product Features
1.High heat efficiency ,special structure ,could keep total heat efficiency up to 100%.
2.The control of the oil temperature will be concise within the range from -1°C to +1°C.Under low working pressure of 0.8Mpa ,boiler could achieve working temperature of 320°C.
3.There's a connection for the inert gas on the front shroud and it could fill 3 times of the capacity of the furnace with inert gas within 15 minutes in case of emergency to protect it and thus extend the life span.
4.Fully shop-assembled ,save transportation cost and installation fees.
5.The boiler operates automatically and will get rid of misconduct .With a nuclear PLC ,the percentage will be adjusted automatically and the monitor will be ral time ,together with the chainining protection.
Technical Parameters
Description | Unit | 600 | 850 | 1200 | 1400 | 1800 | 2400 | 3500 | 4100 | 6000 | |
Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | |||
Rated thermal power (KW) | KW/104kcal | 600/50 | 850/75 | 1200/100 | 1400/125 | 1800/150 | 2400/200 | 3500/300 | 4100/350 | 6000/500 | |
Heating efficiency (≥%) | % | 90 | 90 | 90 | 92 | 92 | 92 | 92 | 92 | 92 | |
Design pressure | Mpa | 1 | 1 | 1 | 1 | 1 | 1 | 1.1 | 1.1 | 1.1 | |
Medium highest temperature | ℃ | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
Medium capacity of boiler | m³ | 0.4 | 0.52 | 0.76 | 0.95 | 1.48 | 2.1 | 2.4 | 2.53 | 6.1 | |
Medium circulation volume | m³/h | 80 | 80 | 100 | 100 | 160 | 200 | 200 | 200 | 300 | |
DN of oil outlet | DN | 100 | 100 | 125 | 125 | 150 | 200 | 200 | 200 | 250 | |
Whole system installed capacity | Oil | KW | 30 | 40 | 40 | 45 | 50 | 70 | 70 | 70 | 150 |
Gas | KW | 30 | 40 | 40 | 45 | 50 | 70 | 70 | 70 | 150 | |
Total weight of equipment | KG | 3530 | 4500 | 5600 | 6200 | 9500 | 10500 | 13500 | 16065 | 28850 | |
External dimension | Length | mm | 3650 | 4100 | 5500 | 5700 | 5900 | 6500 | 8000 | 8200 | 9000 |
Width | mm | 1500 | 1700 | 2100 | 2100 | 2100 | 2300 | 2400 | 2500 | 3200 | |
Height | mm | 1870 | 2100 | 2400 | 2400 | 2550 | 2750 | 2900 | 3000 | 3600 | |
Transport dimension | Length | mm | 3250 | 3800 | 4600 | 4850 | 5100 | 5800 | 6800 | 7200 | 7800 |
Width | mm | 1500 | 1700 | 2100 | 2100 | 2100 | 2300 | 2400 | 2500 | 3200 | |
Height | mm | 1870 | 2100 | 2400 | 2400 | 2550 | 2750 | 2900 | 3000 | 3600 |
