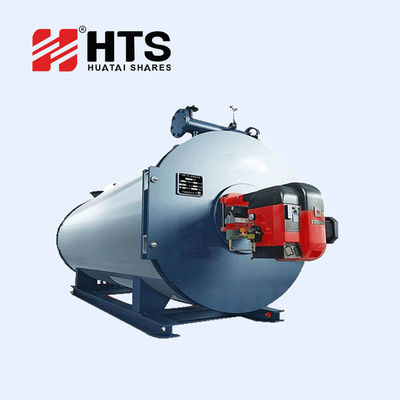

Thermal Oil Heater Industry Hot Oil Boiler One Year Warranty Horizontal After-sales Service Diesel Oil

1 Set
MOQ
$17,293.50(>=1 Sets)
Prix
Thermal Oil Heater Industry Hot Oil Boiler One Year Warranty Horizontal After-sales Service Diesel Oil
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Boiler
Condition: New
Type: Natural Circulation
Usage: metallurgical industry
Structure: Fire Tube
Pressure: Pressure bearing
Steam Production: Can be Customized
Style: Horizontal
Fuel: Oil-fired, Naphtha,Liquefied gas,Natural Gas
Output: Hot oil
Dimension(L*W*H): 5888*2166*2520
Weight: 8903kg
Warranty: 1 Year
Key Selling Points: Accurate temperature control
Product name: Thermal oil boiler
Rated thermal capacity: 350~3500 kw
Rated Steam Pressure: 1.1MPa
Natural Gas: 438 Nm3/h
Voltage: customized
Boiler color: customized or standard
Burner brand: Baltur
Control system: Siemens PLC
Application: School
Informations de base
Conditions de paiement et expédition
Packaging Details: China factory excellent quality waste heat recovery thermal oil boiler 1.Standard export packing 2.According to customer requirements
Supply Ability: 50 Set/Sets per Month Thermal oil boiler
Description de produit
Product Overview

One Year Warranty and After-sales Service Horizontal Gas Oil Thermal Oil Heater Industry Hot Oil Boiler

Thermal oil boiler is a package type forced circulation fuel (gas) fired boiler, the heated area adopts compact structure and it is composed of internal, intermediate and external( or internal and external)disc coil tube, inner tube is the heating surface, while middle surface, outer surface and outer surface of inner tube constitute a convection heating surface.
Fuel combusts in the combustion chamber that is composed of inner coil tube,then heat will be released, after absorbing most of the heat through radiation heating surface,high temperature gas enters into the convection heating surface and exchange heat, in the end, low temperature gas will be discharged from gas duct outlet, then it will be eliminated directly the atmosphere from smokestack.

Anvantages

1.Thermal oil boiler is a special once-through type boiler developed on the basis of forced circulation
2.Thanks to the coil structure, hence it ensure sufficient heated surface and a high thermal efficiency.
3.Reasonable structure, complete auxiliary facilities,short installation cycle, easy operation and maintenance, simple boiler layout.

4.The fuel is burnt adiabatically in the combustion chamber, hence it provides easier ignition more sufficient combustion and higher thermal efficiency
5.In addition to thermal oil,light oil, heavy oil, diesel oil, natural gas, coal gas, biomass fuel,pure coal or mixed coal and biomass fuels are available as well.
6.Closed cycle heating connected with atmosphere extends the boiler service life, liquid phase heat transfer provides small heat loss,obvious energy saving effect and good environmental protection effect.
Model
Rated thermal power（KW）
Rated working pressure（MPa）
Furnace content oil volume（m³）
Circulating oil volume（m³）
YY(Q)W-700Y(Q)
700
0.8
0.28
60
YY(Q)W-900Y(Q)
900
0.8
0.44
80
YY(Q)W-1200Y(Q)
1200
1
0.7
100
YY(Q)W-1500Y(Q)
1500
1
1
100
YY(Q)W-1800Y(Q)
1800
1
1.48
150
YY(Q)W-2400Y(Q)
2400
1
2.2
200
YY(Q)W-3000Y(Q)
3000
1
3.5
200
YY(Q)W-3500Y(Q)
3500
1
4.7
250
YY(Q)W-4000Y(Q)
4000
1
5.7
250
YY(Q)W-4600Y(Q)
4600
1
7.2
250
YY(Q)W-6000Y(Q)
6000
1
8.5
300
YY(Q)W-7100Y(Q)
7100
1
9.5
300
FAQ
1.What can you get from us before quotation?
A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.

2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2.3. What is the requirement for oil/steam temperature and pressure?

3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel,
furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time
takes longer.
