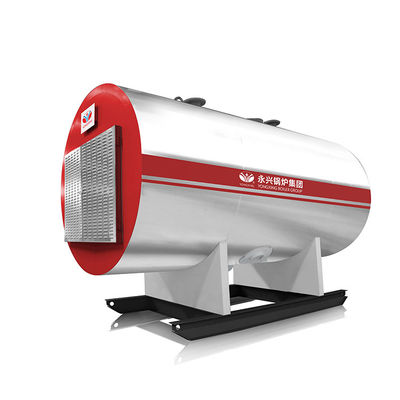

Horizontal Supplier For Steam Boiler Fully Automatic Electric Laundry Heater 500kg 900kg h 3500kg/h

1.0 Units
MOQ
Horizontal Supplier For Steam Boiler Fully Automatic Electric Laundry Heater 500kg 900kg h 3500kg/h
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: electric heat tube
Pressure: Low Pressure
Steam Production: Max. 6t/h
Style: Horizontal
Fuel: Electric-fired
Output: Steam
Dimension(L*W*H): Depends
Weight: 5~50ton
Warranty: 1 Year
Key Selling Points: Long Service Life
Color: As your request
Motor Power: Optional
Rated steam capacity: 0.1-6t/h
Rated steam pressure: 0.4/0.7Mpa
Rated steam temperature: 151/170C
Thermal efficiency: 99%
Material: Q345R Steel Plate
Keywords: industrial electric boiler, electric heating boiler
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certification: ISO9001:2008
Informations de base
Certification: ISO9001:2008
Conditions de paiement et expédition
Packaging Details: The boiler electric in nude package, boiler accessories in plywood case professional packaging transportation
Supply Ability: 100 Unit/Units per Month Industrial Electric Heating Steam Boiler
Description de produit
Product Description
WDR series full-automatic horizontal electric heating steam boiler adopts the method of separating the electric control cabinet of the furnace body to avoid the influence of the service life of the electrical components due to heat aging. The electric heating tube is made of high-quality domestic and foreign products, the normal service life is about 20,000 hours, the thermal efficiency is nearly 99%, the operation is quiet, clean, and it meets the requirements of environmental protection, and will not emit NOx (nitrogen oxide) to the atmosphere. The operation adopts PLC control system, free operation button, free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning. All electrical components have CE and CCC certification marks to ensure product safety and service life. Each group of electric heating elements are connected by centralized beam flanges, which are independently set up. They have the characteristics of simple structure, high mechanical strength, safety and reliability, easy replacement, and long service life. Large steam space and good steam quality; The electromechanical is installed separately, and the electric control components are far away from the heat source, which is good for heat dissipation. Single or multiple units can be used in parallel. PLC microcomputer programmable control and display screen; realize the temperature setting and automatic control of the outlet water temperature through the man-machine interface. The display screen can display equipment status, operating parameters and fault alarms.
1. It has a large steam space and good steam quality. 2. Fully automatic intelligent control technology, no need to be on duty. Flexible working mode, can be set to manual or automatic 3. The automatic operation time period of the boiler can be set according to the needs, and multiple different working periods can be set in a day, so that the boiler can automatically start each heating group in time, and the heating group can be switched in cycles, so that the use time and frequency of each contactor are the same, and the Equipment service life. 4. The controller automatically controls, calculates, and tracks the pressure, and can automatically start and stop the feed water pump and the electric heating tube when the load changes, or it can be controlled manually. 5. It has a full range of protection functions, including leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power supply protection, etc., boiler automatic protection, safe to home. 6. The boiler body is made of boiler steel plate, the longitudinal and circumferential welds of the furnace body are all automatically welded, and X-ray inspection is carried out. The small boiler body, electromechanical integration, easy to install and match; large boiler body and electric control split The design prevents the electric control part from being affected by the high temperature of the furnace body, and ensures the stable operation of the electric control device. 7. The compact structure, scientific and reasonable design and advanced manufacturing technology enable the boiler to occupy a small space, facilitate transportation and save the use of space. 8. No noise, no pollution, high thermal efficiency, the boiler body adopts high-quality and high-efficiency heat preservation materials for heat preservation, low heat dissipation loss, energy saving and consumption reduction. 9. The outer packaging of the boiler adopts the famous and high-quality color board package design, which is beautiful in appearance and not easy to rust. 10. All electrical components have CE and CCC certification marks to ensure product safety and service life. 11. The circuit design is advanced, the wiring is well made and the wiring is neat and reasonable, and the operation is extremely convenient. 12. The electric heating tube and the furnace body are connected by flanges, which is convenient for disassembly and assembly, and is convenient for maintenance. 13. It has safety protection systems such as automatic water replenishment, water shortage, over-temperature, over-pressure, automatic power-off and alarm, and leakage protection. 14. PLC microcomputer programmable control and display screen; through the man-machine interface, the temperature setting can automatically control the outlet water temperature, and the display screen can display equipment status operating parameters and fault alarms.
Specification
item
value
Applicable Industries
Hotels, Manufacturing Plant, Food & Beverage Factory
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
NoEnName_Null
Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
electric heat tube
Pressure
Low Pressure
Steam Production
Max. 6t/h
Style
Horizontal
Fuel
Electric-fired
Place of Origin
Henan, China
Brand Name
Yongxing
Output
Steam
Dimension(L*W*H)
Depends
Weight
5~50ton
Certification
ISO9001:2008
Key Selling Points
Long Service Life
Color
As your request
Motor Power
Optional
Rated steam capacity
0.1-6t/h
Rated steam pressure
0.4/0.7Mpa
Rated steam temperature
151/170C
Thermal efficiency
99%
Material
Q345R Steel Plate
Keywords
industrial electric boiler, electric heating boiler
Packing & Delivery
Company Profile
Henan Yongxing Boiler Group Co., Ltd. has the world's advanced level of WNS, SZS oil and gas boiler series; The SHL series chain grate boiler designed and manufactured by introducing advanced German chain grate combustion technology is at the leading level in China; DZL type two wing flue products series, known as the third generation fast installation boiler, are national patent products and high-quality products of the former Ministry of machinery; SZL assembled chain boiler adopts water-cooled arch and membrane wall, which is original in China and is in the leading position in technology; Henan Yongxing Boiler Group Co., Ltd. is a limited liability company specializing in the research and development, manufacturing and sales, and installation services of various types of boilers and thermal mechanical equipment. The company holds A-level boiler manufacturing qualification, A-level pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and has passed the ISO9001:2000 quality management system certification. The company strictly follows the ISO9001 international quality management system assurance mode, carries out quality management and quality inspection control activities, and the product quality is stable. It has been rated as "contract abiding and law abiding enterprise" by Henan industry and Commerce Bureau, as "national integrity and law abiding enterprise" by the Ministry of agriculture, as a member unit of China Association for quality and technical supervision, and has obtained a number of patented technologies, such as coal-fired, fuel oil, gas, electric heating, steam boiler, hot water boiler, boiling water boiler, organic heat carrier furnace, hot air furnace, circulating fluidized bed boiler The supercharger, the gas integrated environmental protection boiler and A-class pressure vessel developed around the coal-fired environmental protection problems strictly implement the national and industrial standards. The product design is reasonable, the production process is advanced, and the technical content is in the leading position among the similar products in the country. It has the characteristics of compact structure, low noise, high thermal efficiency, safe and reliable operation, beautiful appearance and high degree of automation, All the environmental protection indexes meet the requirements of national environmental protection standards for class I areas, and are excellent products recommended by the environmental protection department. In order to meet the market demand, the company has formed a complete business system from product development, manufacturing and sales, equipment selection, engineering project planning, design and equipment installation, system debugging, maintenance to operator training, etc., which can provide users with convenient and efficient all-round services. The company has formed a "people-oriented" management concept, with "high-tech manufacturing high-quality products" as the goal, the company has formulated a number of preferential policies, created a relaxed talent environment, and recruited elites from all sides, resulting in a good situation of synchronous growth of talents and enterprises. The company now has 12 senior engineers, 36 engineers and 50 professional and technical personnel, who have developed fruitful results in the field of boiler and pressure vessel. The company has achieved the management goal of "first-class talents, first-class management, first-class quality and first-class service"" "Speed, innovation, transcendence, integrity" is Yongxing people's corporate philosophy, "quality, pragmatic, efficient" is Yongxing people's permanent commitment. We are willing to cooperate with customers wholeheartedly and create brilliance together! Welcome leaders and colleagues in the industry to visit our company!
FAQ
1. who are we?
We are based in Henan, China, start from 2005,sell to Southeast Asia(50.00%),South Asia(9.00%),Western Europe(6.00%),Central America(5.00%),Northern Europe(4.00%),Eastern Europe(4.00%),Africa(4.00%),Southern Europe(3.00%),South America(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Domestic Market(2.00%),Mid East(2.00%),North America(2.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hot-water boiler,Steam boiler

4. why should you buy from us not from other suppliers?
Henan Yongxing boiler has been specialized in boiler production for more than 20 years, and its technical level is at the leading level in China. In recent years, the group company has won 27 national patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
