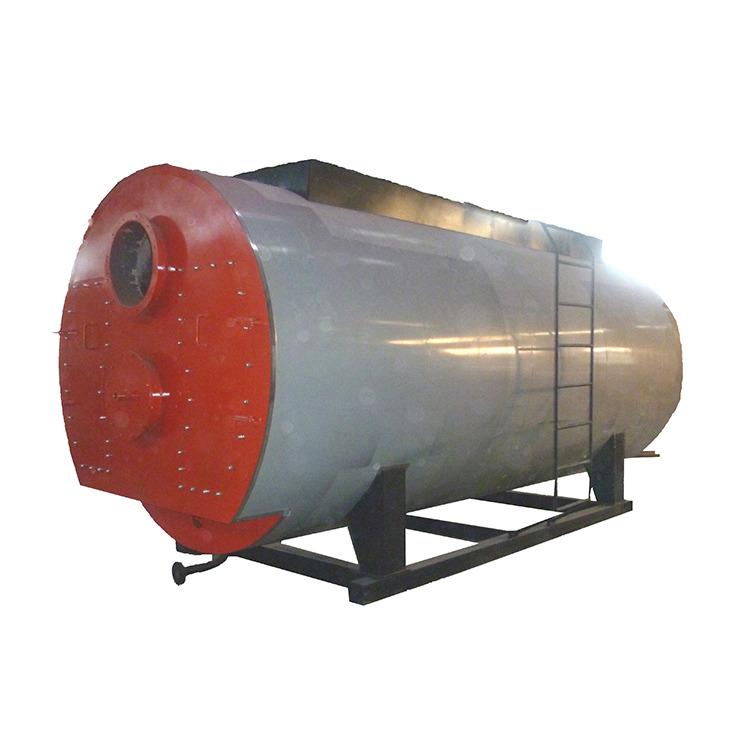

High quality oil & gas heating hot water boiler manufacture
WNS series horizontal china hot water boiler is the use of natural gas and other gaseous fuels mainly hot water boiler. Efficient automatic control system with complete security protection, including water protection, over voltage protection, flame protection, abnormal pressure protection, flue over temperature protection. Horizontal gas boiler scientific structure, small size, easy to install, easy to operate, intelligent regulation, the fuel pressure atomization, using positive pressure combustion fuel combustion, reduce heat loss, is the most energy saving industrial boiler hot water boilers.
Type
Item | Unit | CWNS 0.35-0/85/60-YQ | CWNS 0.7-0/85/60-YQ | CWNS 1.05-0/85/60-YQ | CWNS 1.4-0/85 /60-YQ | CWNS 2.1-0/85/60-YQ | CWNS 2.8-0/85 /60-YQ | CWNS 4.2-0/85 /60-YQ | CWNS 5.6-0/85/ 60-YQ | CWNS 7.0-0/85/ 60-YQ | ||
Rated Capacity power | MW | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | 4.2 | 5.6 | 7.0 | ||
Rated calorific value | x104Kcal/h | 30 | 60 | 90 | 120 | 180 | 240 | 360 | 480 | 600 | ||
Rated pressure | MPa | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
Rated outlet/inlet temperature ·
| ℃ | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | ||
Thermal efficiency | % | 93-96 | 93-96 | 93-96 | 93-96 | 93-96 | 93-96 | 93-96 | 93-96 | 93-96 | ||
Heat efficiency of condensing boiler | % | 96-103 | 96-103 | 96-103 | 96-103 | 96-103 | 96-103 | 96-103 | 96-103 | 96-103 | ||
Fuel Consumption | light diesel oil | Kg/h | 32 | 64.5 | 97.5 | 128 | 195 | 256 | 364 | 501 | 607 | |
Alcohol-based fuel | Kg/h | 48 | 80 | 130 | 160 | 240 | 350 | 500 | 700 | 880 | ||
Natural gas | Nm3/h | 40 | 70 | 110 | 140 | 210 | 280 | 420 | 619 | 756 | ||
Liquid gas | Kg/h | 15 | 30 | 45 | 60 | 90 | 120 | 180 | 240 | 300 | ||
Town gas | Nm3/h | 90.7 | 164 | 274 | 330 | 549 | 686 | 989 | 1319 | 1650 | ||
Heating area | m2 | 3000 | 6000 | 9000 | 12000 | 18000 | 24000 | 36000 | 48000 | 60000 | ||
The 50 ℃ hot water
The 50 ℃ hot water
| T/h | 7.0 | 13 | 20 | 26 | 40 | 55 | 70 | 104 | 130 | ||
Boiler Dimension | Length | mm | 2280 | 2715 | 2925 | 3500 | 3725 | 5100 | 5700 | 6000 | 6800 | |
Width | mm | 1090 | 1280 | 1500 | 2000 | 2200 | 2500 | 2600 | 2800 | 2800 | ||
Height | mm | 1320 | 1560 | 1655 | 2100 | 2100 | 3500 | 2800 | 3200 | 3200 |
Q1: How to choose a boiler model?
A1: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel) of the boiler, we will suggest a suitable model based on your usage.
Q2:What is the using life of your boiler?
A2: Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
Q3: What is your MOQ?
A3: 1 piece/set.
Q4: Do you have any one in stock?
A4: Yes, we have. There are some Chinese popular boilers in stock.
Q5: Can you supply OEM or ODM product?
A5: Yes, we can.
Q6: How to install a boiler?
A6: We will provide a video and document for installation. If you still have problem,we will send engineer to your site for guiding and training.
Q7: How is the warranty term?
A7: If any problems caused for quality during the warranty period, we will repair or replace the broken parts for free, if the problem caused from the client’s side, we will help supply the spare parts at lowest cost.
