Aperçu /Produits/chaudière à vapeur diesel/Horizontal supply energy saving 1Ton 2Ton/h diesel and natural gas steam boiler price from Shanghai factory

Horizontal supply energy saving 1Ton 2Ton/h diesel and natural gas steam boiler price from Shanghai factory

1 set
MOQ
Horizontal supply energy saving 1Ton 2Ton/h diesel and natural gas steam boiler price from Shanghai factory
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Once Through
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Style: Horizontal
Fuel: NG/LPG/Diesel/HFO
Model Number: WNS1-0.8-Y/Q----WNS2-1.0-Y/Q
Output: Steam
Dimension(L*W*H): Natural Gas Steam Boiler
Weight: Natural Gas Steam Boiler
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008 CE SGS
Product name: 1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices
Rated steam capacity: 1ton/h 2ton/h
Thermal efficiency: 92.4%--94.5%
Working Pressure: 0.8-1.6MPa 8-16Bar
Rated steam temperature: 175/185 ℃
Burner: Italy "BALTUR"
Material: Special Boiler Steel Plate
Manufacture License: Class B
Installation: Quick Install
Warranty: 1 Year
Informations de base
Certification: ISO9001:2008 CE SGS
Model Number: WNS1-0.8-Y/Q----WNS2-1.0-Y/Q
Conditions de paiement et expédition
Packaging Details: 1,Standard Export Wooden Package 2,Modular Block In Container 3,If export to European countries, the wooden box will be fumigated. 4,If container is too tight, we will use PE film for packing or pack it according to customers special request.
Supply Ability: 3000 Set/Sets per Year Natural Gas Steam Boiler
Description de produit
Product Description

Shanghai Factory Supply Energy Saving

1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices

Main Features of 1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices

1)Integrative combustion configuration system
2)Advanced Automatic Control Function
3)Safe and scientific structural design

4)High-quality and fast steam

5)Adopt Imported Burner, Burning More Fully, More Stable Operation And Lower Noise

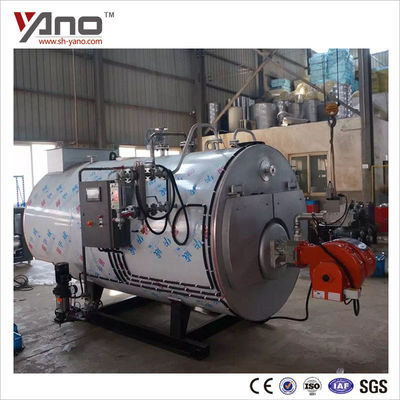

Product Picture of 1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices

Technical Parameter of 1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices

Type/Spec
WNS1.0-0.8-Y/Q
WNS2.0-1.0-Y/Q
WNS3.0-1.3-Y/Q
WNS4.0-1.3-Y/Q
WNS5.0-1.3-Y/Q
WNS6.0-1.3-Y/Q
WNS8.0-1.6-Y/Q
WNS10-1.6-Y/Q
Rated Evaporation (T/h)
1.0
2.0
3.0
4.0
5.0
6.0
8.0
10.0
Thermal Efficiency (%）
≥93
≥93
≥93
≥93
≥93
≥93
≥93
≥93
Rated Pressure (MPa)
0.8
1.0
1.3
1.3
1.3
1.3
1.6
1.6
Steam Temperature(℃)
175
185
195
195
195
195
204
204
Natural Gas (Nm³）
76
152
228
304
380
456
608
760
Liquefied Gas(kg/h)
57
114
171
228
285
342
456
570
Length (mm)
3830
4760
5100
5500
5700
6000
7320
7910
Width (mm)
2530
2510
2660
2700
2800
2950
3050
3250
Height (mm)
1970
2300
2450
2650
2850
3050
3700
3900
Steam Caliber
DN32
DN32
DN40
DN40
DN40
DN50
DN50
DN50
Drain Outlet Caliber (mm)
DN40
DN50
DN65
DN80
DN100
DN100
DN125
DN150
Water Inlet Caliber (mm)
DN40
DN40
DN50
DN50
DN50
DN50
DN50
DN50
Chimney (mm)
300
350
400
450
500
550
650
700

Application of 1Ton 2Ton/h Diesel and Natural Gas Steam Boiler Prices

1. Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.
2. Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipmen
3. Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment
4. Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) made by hua-dong works are hot water supply, (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

Detailed Images

LCD Intelligent Controller

Brand: Yano, Shanghai, China
Lifespan：10 years
Advantage:Domestic famous engines,strong driving force,loe fuel consumption,high economic benefits.

Boiler Liner

Brand: Yano, Shanghai, China
Lifespan：10 years

Advantage:Three-pass vertical water pipes tubular structure.Efficiency is higher than 92%

Water Pump

Brand: Aolong,Zhejiang,China

Material: Brass/Stainless Steel

Temperature Resistance: Up To 120 ℃.

Advantage:10 years lifespan. Compact structure and high mechanical strength stable performance.

Burner

Brand: Bultur,Italy
Lifespan：10 years
Advantage：Stable in Operation, Low Combustion Noise, More Energy Efficient.

Certifications

 CE-Oil(Gas) Steam Boiler                                ISO                                                SGS                                         Manufacturing Licence

Customer Case

Horizontal Oil Gas 1Ton Steam Boiler Exported to Kazakhstan

Horizontal Oil Gas 2 Ton Steam Boiler

Used in Food Industry

Packing & Delivery
Working Live-action
Our Company
FAQ

Q: What is our Qualification?
A: We are a Class B Boiler Manufacturer,Located in Shanghai, with 15 years' experience in the field of boilers.
Q: What is our Product Range?

A: We specialized in Electric Steam Boiler, Gas Fired Steam Boiler,Oil Fired Steam Boiler, ElectricHot water Boiler, Electric Water Heater,Oil(Gas) Hot Water Heater, Steam Cleaner.
Q: How many countries we have exported?
A: We have customers throughout the world, such as France, Britain, Denmark, Greece, Sweden in Europe, Saudi Arabia, Dubai in Middle East, USA, Canada in America, South and North Korea in Asia, New Zealand in Oceania, Rwanda, Tanzania in Africa, Brazil, Peru, Guatemala in Latin America, Singapore, Thailand, Philippines in Southeast Asia, etc.. Our Products are highly appreciated by our customers.
Q: What is our Warranty Period?
A: The Warranty Period is ONE YEAR with lifelong service.
